螺栓電解電容105℃ 鋁電解電容廠家400V 450V 1000UF 高頻低阻長壽命電容
Bolt electrolytic capacitor 105 ℃ aluminum electrolytic capacitor manufacturer 400V 450V 1000UF high-frequency low resistance long life capacitor

螺栓電解電容不僅適用于電路的濾波,而且還能用于電路中的降壓、增壓、調節電壓、整流等工作。由于它結構緊湊,體積小,使用壽命長,能夠提高系統的穩定性

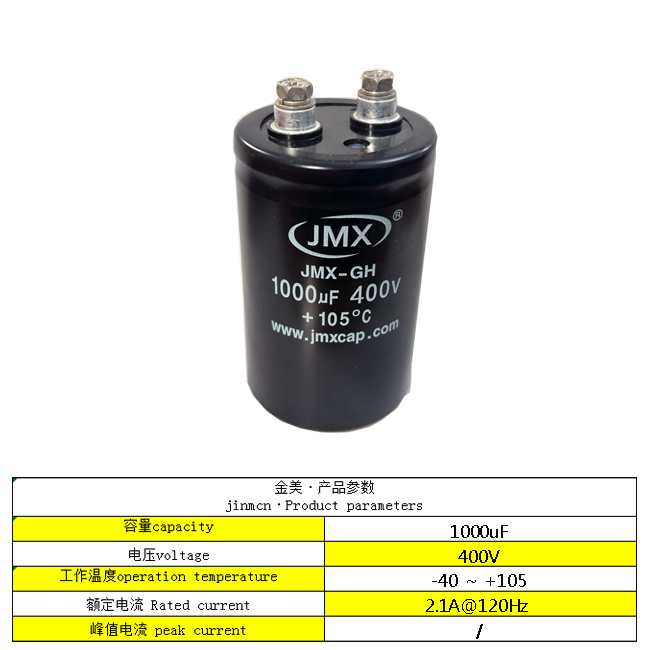

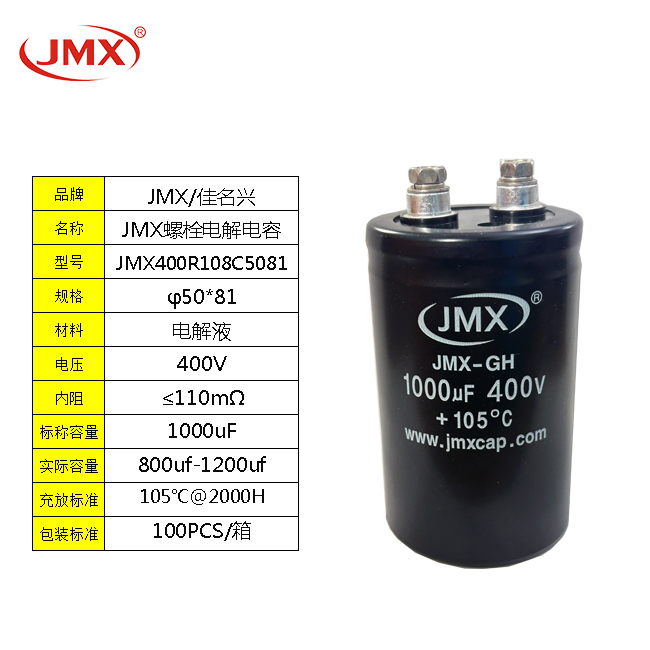

容量 capacity :1000UF
耐壓 voltage : 400V/450V
誤差 Accuracy error : ±10% ±20%
尺寸 size:51*80
額定頻率 Rated frequency:50/60HZ
溫度范圍 temperature range :-40℃~+105℃

螺栓電解電容特點：
不需要焊接,可以實現快速的安裝,連接緊湊,不易斷裂,抗壓性能好,耐溫性強,對電路的熱損耗小,電容量大,具有非常好的電性能

1.卓越的可靠性
2.優異的導熱能力與高耐紋波電流能力
3.超長使用壽命
4.工作溫度范圍寬
5.全焊結構，確?？煽康碾姎饨佑|性
6.可選PAPR型端子(極性顛倒保護)
7.可選底部散熱結構優化型(散熱板安裝)
8.可選低感抗型

螺栓電解電容應用：
螺栓型電解電容器由于其工作原理，具有許多特點，使得它們在許多領域都有應用。
1.常用于供電電路中，用來穩定電壓和電流，并幫助消除高頻干擾。
2.在音頻放大器中使用，可以提供良好的音質和動態范圍。
3.在交流電機或變頻器系統中使用，可以幫助消除電機振動和電感電流噪音。
4.在各種高頻濾波器中使用，可用于抑制高頻噪聲和交流波紋。
5.在電源回路和直流電路中使用，可有效穩定電壓和電流。

Characteristics of bolt electrolytic capacitors:

No welding required, fast installation can be achieved, with compact connections, not easily broken, good compressive performance, strong temperature resistance, low heat loss to the circuit, large capacitance, and excellent electrical performance

1. Excellent reliability

2. Excellent thermal conductivity and high resistance to ripple currents

3. Long service life

4. Wide working temperature range

5. Fully welded structure to ensure reliable electrical contact

6. Optional PAPR type terminals (polarity reversal protection)

7. Optional bottom heat dissipation structure optimization type (heat dissipation plate installation)

8. Optional low sensitivity type

Application of bolt electrolytic capacitors:

Bolt type electrolytic capacitors have many characteristics due to their working principle, making them applicable in many fields.

1. Commonly used in power supply circuits to stabilize voltage and current, and to help eliminate high-frequency interference.

2. When used in audio amplifiers, it can provide good sound quality and dynamic range.

3. When used in AC motors or frequency converter systems, it can help eliminate motor vibration and inductor current noise.

4. It can be used in various high-frequency filters to suppress high-frequency noise and AC ripple.

5. It can effectively stabilize voltage and current when used in power circuits and DC circuits.
